Honda / Acura K24Z RSX Type-S PRB Oil Filter Block-Off Plate PRL Motorsports

When building the K24Z motors like the 9th Gen Civic Si and TSX to turn out big power and 8000+ rpms the factory oiling system becomes inefficient and problematic due to the balance shafts the OEM oil pump uses.

The most common and cost-effective solution to this is swapping in the Acura RSX Type-S PRB oil pump to eliminate the balance shafts and better supply oil.

This kit is required to block-off the factory oil filter housing location at the bottom of the K24Z block when doing the a PRB/Type-S oil pump swap and relocates the filter location to the top of the block like the rest of the K-Series motors.

Note: The Factory K24Z Style Oil PUmp Must Be Swapped to a PRB Style Oil Pump when using this block off Plate. Not doing so will result in the loss of all oil pressure

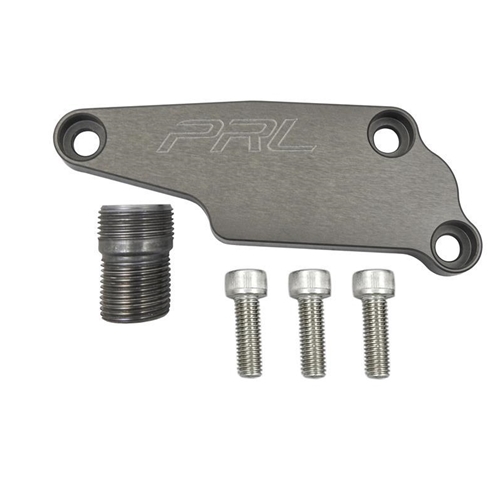

Kit Includes:

• Oil Pump Block-Off Plate
• 2 OEM Honda O-Rings
• 3 Stainless Steel Socket Head Cap Screw Bolts
• OEM Honda Oil Filter Holder
